HTTP/1 V.S. & Http/2

HTTP/1.x Limitation​

HTTP/1.x uses text-based messages that are straightforward to read and construct, but as a result have a few downsides. You can compress message bodies using gzip or other compression algorithms, but not headers. Headers are often similar or identical in a client-server interaction, but they are repeated in successive messages on a connection. There are many known methods to compress repetitive text that are very efficient, which leaves a large amount of bandwidth savings unutilized.

HTTP/1.x also has a problem called head-of-line (HOL) blocking, where a client has to wait for a response from the server before sending the next request. HTTP pipelining tried to work around this, but poor support and complexity means it's rarely used and difficult to get right. Several connections need to be opened to send requests concurrently; and warm (established and busy) connections are more efficient than cold ones due to TCP slow start.

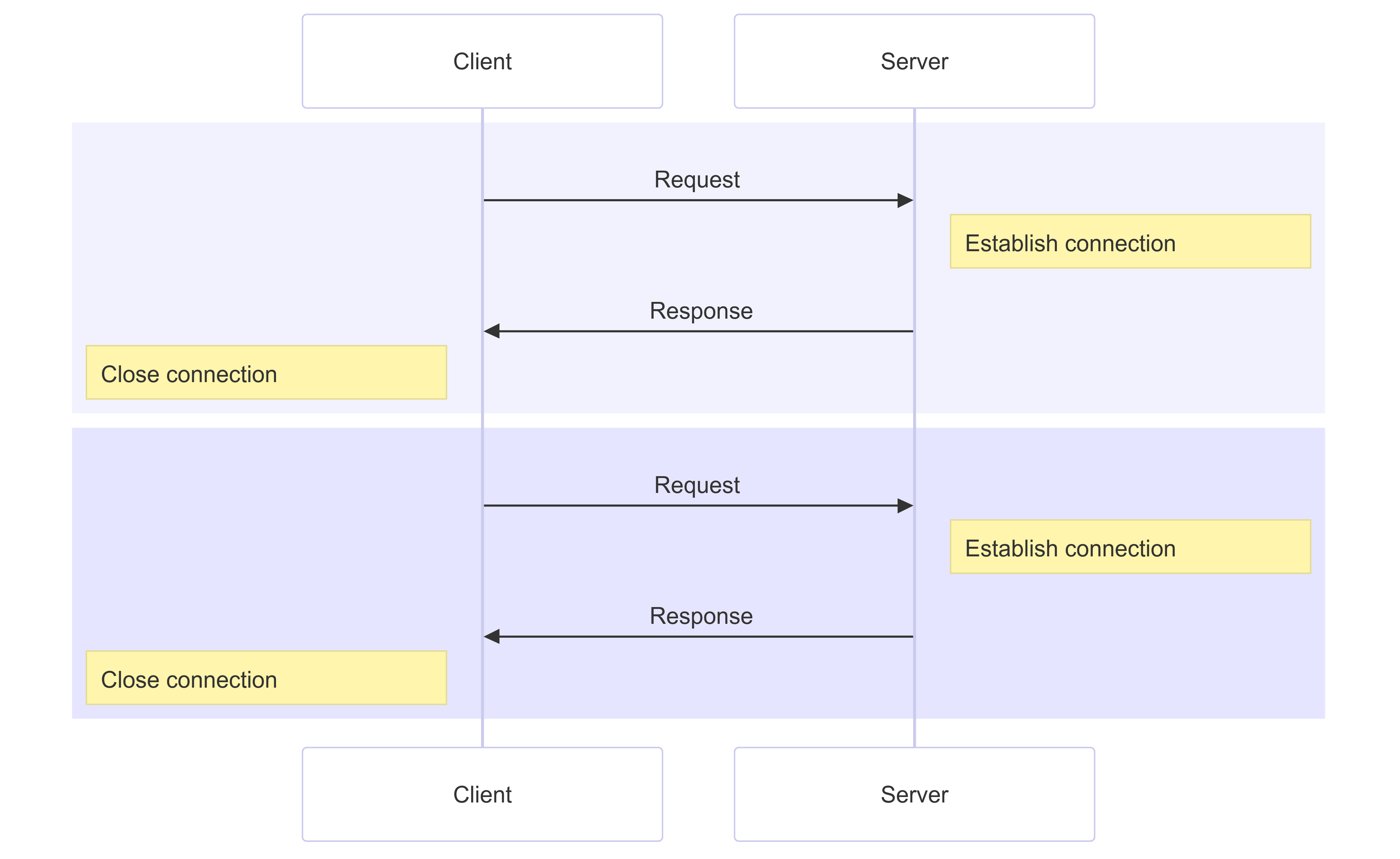

In HTTP/1.1 if you want to make two requests in parallel, you have to open two connections:

http overview

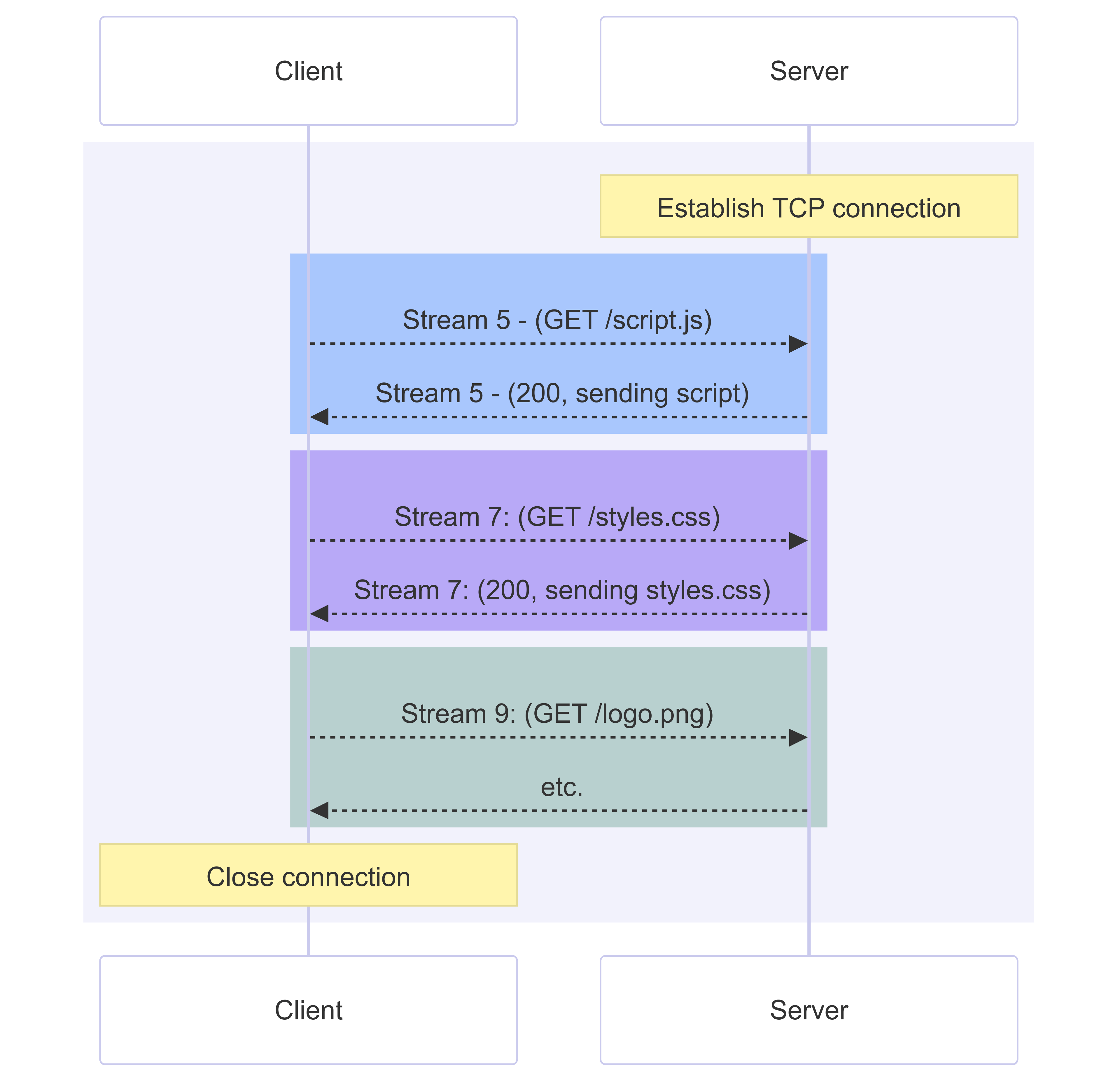

This means that browsers are limited in the number of resources that they can download and render at the same time, which has typically been limited to 6 parallel connections. HTTP/2 allows you to use a single TCP connection for multiple requests and responses at the same time. This is done by wrapping messages into a binary frame and sending the requests and responses in a numbered stream on a connection. Data and header frames are handled separately, which allows headers to be compressed via an algorithm called HPACK. Using the same TCP connection to handle multiple requests at the same time is called multiplexing.

http overview

Requests are not necessarily sequential: stream 9 doesn't have to wait for stream 7 to finish, for instance. The data from multiple streams are usually interleaved on the connection, so stream 9 and 7 can be received by the client at the same time. There's a mechanism for the protocol to set a priority for each stream or resource. Low-priority resources take up less bandwidth than higher-priority resources when they're being sent over different streams, or they could effectively be sent sequentially on the same connection if there are critical resources that should be handled first.

In general, despite all of the improvements and abstractions added over HTTP/1.x, virtually no changes are needed in the APIs used by developers to make use of HTTP/2 over HTTP/1.x. When HTTP/2 is available in both the browser and the server, it is switched on and used automatically.

Pseudo-headers​

One notable change to messages in HTTP/2 are the use of pseudo-headers. Where HTTP/1.x used the message start-line, HTTP/2 uses special pseudo-header fields beginning with :. In requests, there are the following pseudo-headers:

  • :method - the HTTP method.
  • :scheme - the scheme portion of the target URI, which is often HTTP(S).
  • :authority - the authority portion of the target URI.
  • :path - the path and query parts of the target URI.

In responses, there is only one pseudo-header, and that's the :status which provides the code of the response.

Conclusion​

We explored HTTP/2 message framing, which introduces a layer between the HTTP/1.x syntax and the underlying transport protocol without fundamentally modifying HTTP's semantics. HTTP/2 was introduced to solve the head-of-line blocking issues present in HTTP/1.x by enabling multiplexing of requests.

One issue that remained in HTTP/2 is that even though head-of-line blocking was fixed in the protocol level, there is still a performance bottleneck due to head-of-line blocking within TCP (at the transport level). HTTP/3 addresses this limitation by using QUIC, a protocol built on UDP, instead of TCP. This change improves performance, reduces connection setup time, and enhances stability on degraded or unreliable networks. HTTP/3 retains the same core HTTP semantics, so features like request methods, status codes, and headers remain consistent across all three major HTTP versions.
